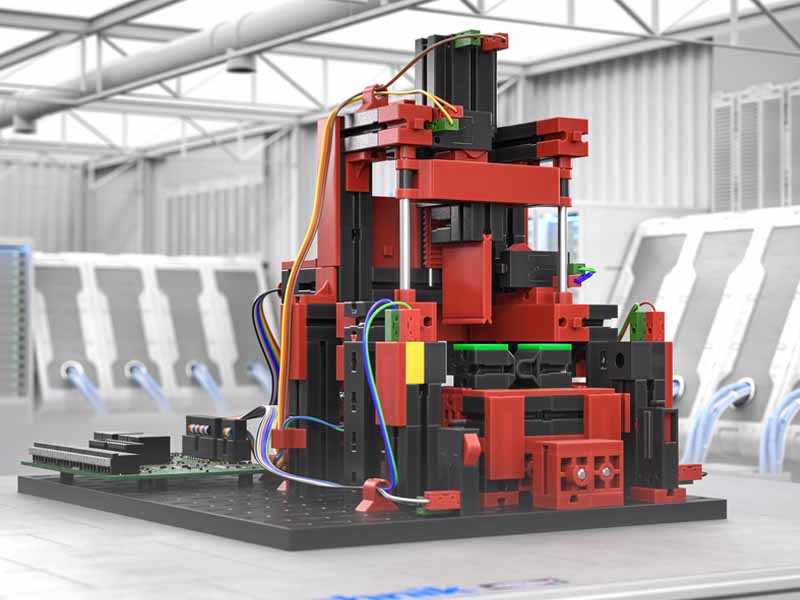

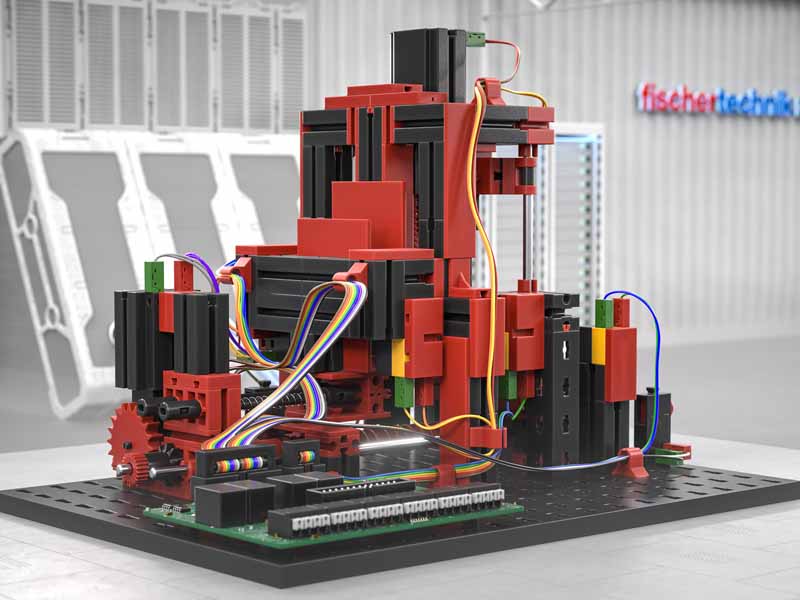

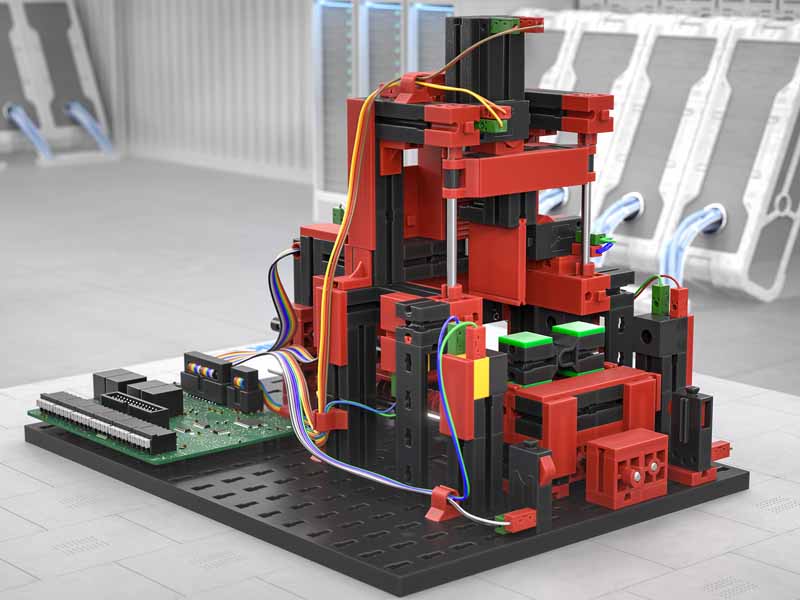

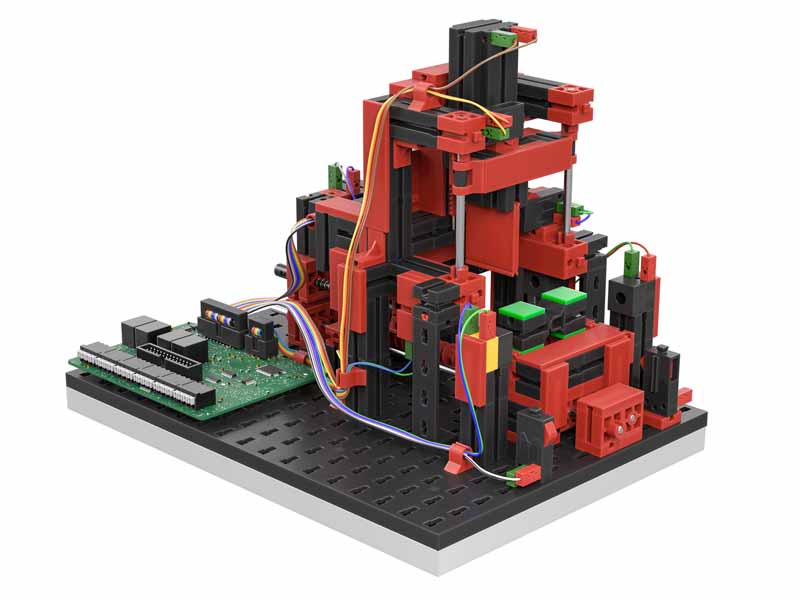

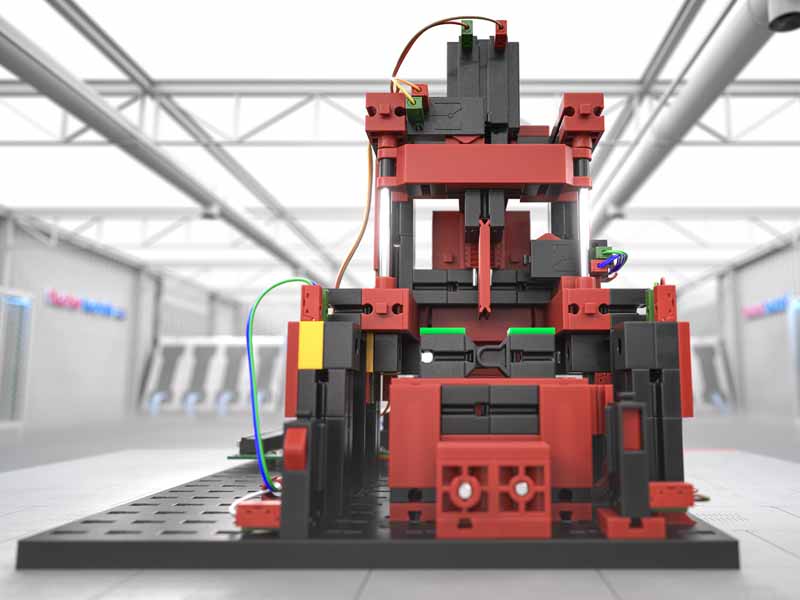

The fischertechnik bending machine 24V simulates the transportation and bending of workpieces. The model can be used in either semi-automatic or automatic mode. In semi-automatic mode, the unbent workpieces are manually inserted into the transport carriage. In automatic mode, the transport carriage positions itself automatically under a magazine that provides the workpieces. The loaded carriage then transports the workpiece to the bending machine, where it is bent. The transport carriage then takes the bent workpiece to the removal point.
The 24V bending machine includes a comprehensive PLC course that uses the physical model to create a lasting learning experience for PLC programming. At the end of the course, the learner will be able to wire the 24V bending machine independently and program it in function block diagram or structured text. In a safe, yet industry-real environment, they will build up know-how that can be used for real machine programming and commissioning. The didactic concept covers all the essential steps from wiring using a circuit diagram and creating a flowchart to programming (FBD or SCL) and commissioning the model. Thanks to the action-oriented approach of this training model, participants not only develop a deep understanding of PLC programming, but also the ability to master complex control tasks independently. The model promotes hands-on learning, creativity and problem-solving skills, optimally preparing participants for the demands of industrial practice.
Industry-oriented and hands-on, fit for the future! The fischertechnik bending machine 24V is the ideal training model for in-company and inter-company training and further education. Apprentices, students and trainees develop lasting learning experiences on the physical training model. The practice-oriented approach succeeds thanks to a comprehensive PLC course, which introduces learners step by step to working with programmable logic controllers. From creating a sequence description as a GRAFCET, to reading and using a circuit diagram, to programming in a function block diagram or structured text and finally commissioning the training model, our PLC course covers all points so that the knowledge acquired can then be used in the real industrial environment in operation.
- Action-oriented AND safe learning environment for PLC programming
- Ideal for in-company and inter-company training and further education
- Consistent learning concept thanks to the combination of physical training model and PLC course
- Comprehensive PLC course for the 24V bending machine training model available to download free of charge
REQUIRES PLC (not included)
