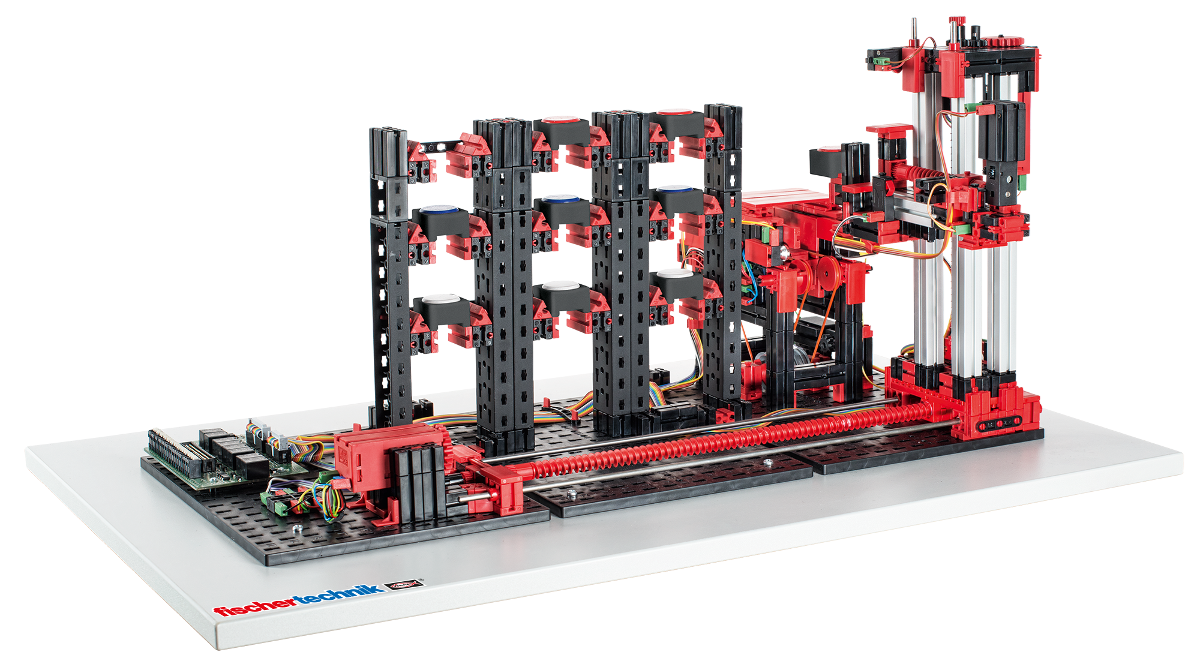

    Automated High Bay Warehouse 24V

    Transfer station with conveyor belt, with shelf stacker for storing and retrieving special workpiece carriers, and 9 storage spots. Fully assembled training model for use with PLC (Programable Logic Controllers) and PLC programming software.

    MFR Part #: 536631
    $1,448.95
    Availability: In stock

    Transfer station with conveyor belt, with shelf stacker for storing and retrieving special workpiece carriers, and 9 storage spots.

    Models components include 2 encoder motors, 2 mini motors, 4 push-button limit switches, 2 phototransistors, 2 LED light barriers, workpiece carriers, and workpieces in three colors (red, white, and blue).

    Dimensions: 18.58 x 28.43 x 15.03 inches

    Weight: 17.64 lbs.

    Products specifications
    Detail

    The fischertechnik Automated High Bay Warehouse 24V includes:

    • 2 encoder motors
    • 2 mini motors
    • 4 push buttons (limit switch)
    • 2 phototransistors
    • 2 lens tip lamps
    • Workpiece carriers
    • Various colored workpieces (red, white, and blue)
    • Port: PCB with relays to reverse polarity of motor, multi-pin connector (34 pin, ST1 connection) and additional PCB terminals with push in connection for all I/O.

    NOT INCLUDED: PLC, program or program templates, programming software, connectors, other hardware
