    Quality Control w/AI - 9V version

    Visualize AI models and make them easily comprehensible

    • Ideal training, simulation and demonstration model for education and research
    • Visualization of AI systems, machine learning and neural networks
    • Networking of theory and practice for a sustainable learning result
    • Already built, stable training model. Mounted on stable wooden plate, packaging of the model in stable cardboard box
    • IMPORTANT: For all operations, a power supply 9V/2,5A is required (sold separately)

    Artificial intelligence in research, education and industry

    The use of artificial intelligence in industry, education and research is becoming more and more important. The Quality Control with AI System model from fischertechnik is ideal for visualising this complex subject in a hands-on way since it creates a sustainable learning experience by linking theory and practice.

    MFR Part #: 568416
    $2,089.95
    $1,981.49

    Visualizing quality assurance through AI with fischertechnik

    The use of artificial intelligence in quality control brings numerous advantages, which are already being used in the automotive industry for instance. Processes can be speeded up, fault rates and costs minimised and fault evaluation standardised. The fischertechnik sorting line is supplied with workpieces in three different colours. These workpieces are marked with three processing characteristics as well as different fault patterns. The workpieces are scanned by the camera and classified with the aid of the trained AI. Depending on colour, feature and fault pattern, the workpieces are then sorted by the artificial intelligence on the basis of their quality features. The AI used is realised with machine learning in Tensorflow, where an artificial neuronal network was trained with image data. The learned AI is executed on the fischertechnik TXT 4.0 Controller. The model’s sequence control is implemented in the ROBO Pro Coding programming environment and in Python.

    Generate your own AI applications

    If you want to go a step further, you have the option of generating your own AI applications. The training is done in Python, for which a suitable example project is provided for explanation.

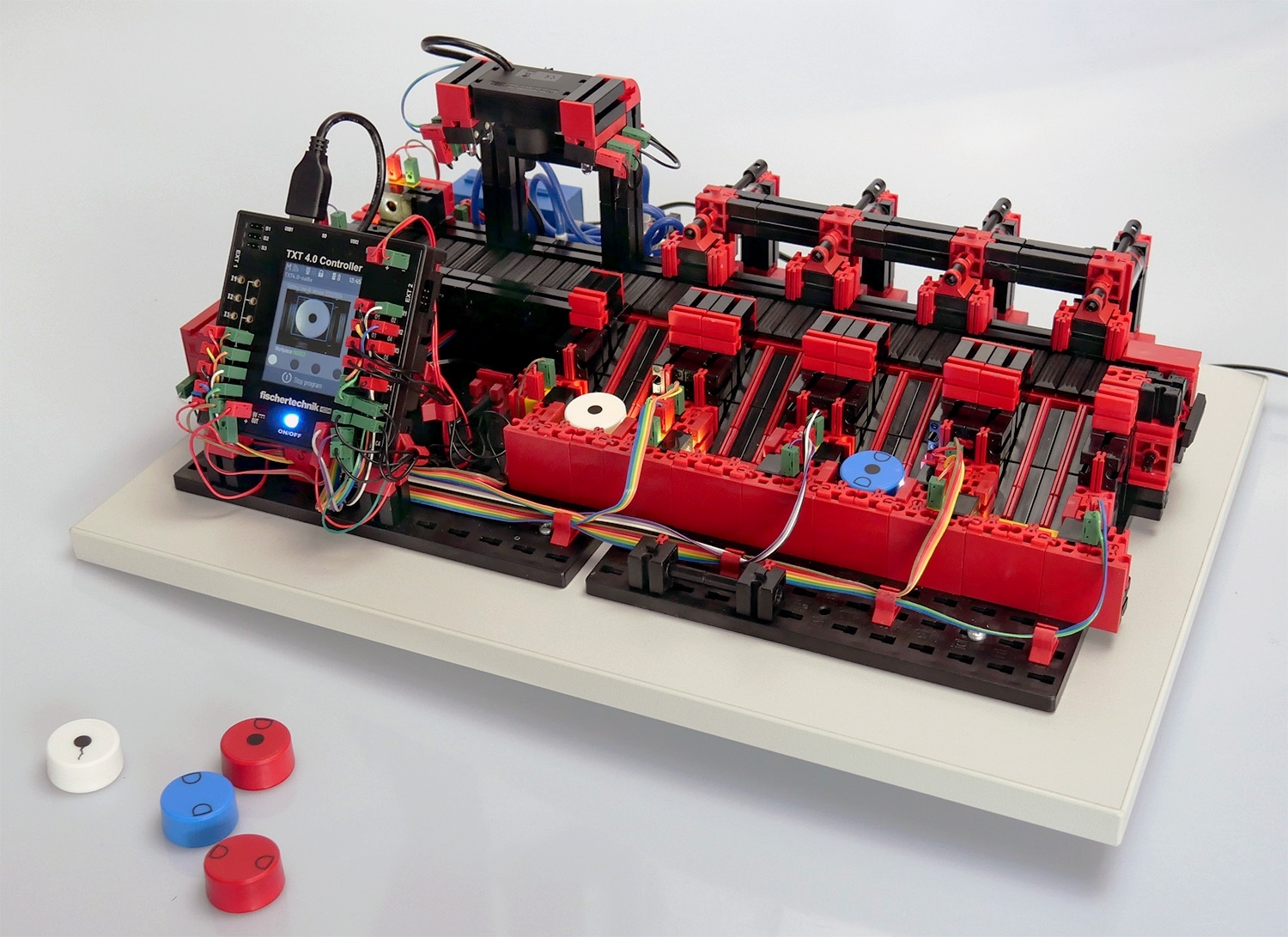

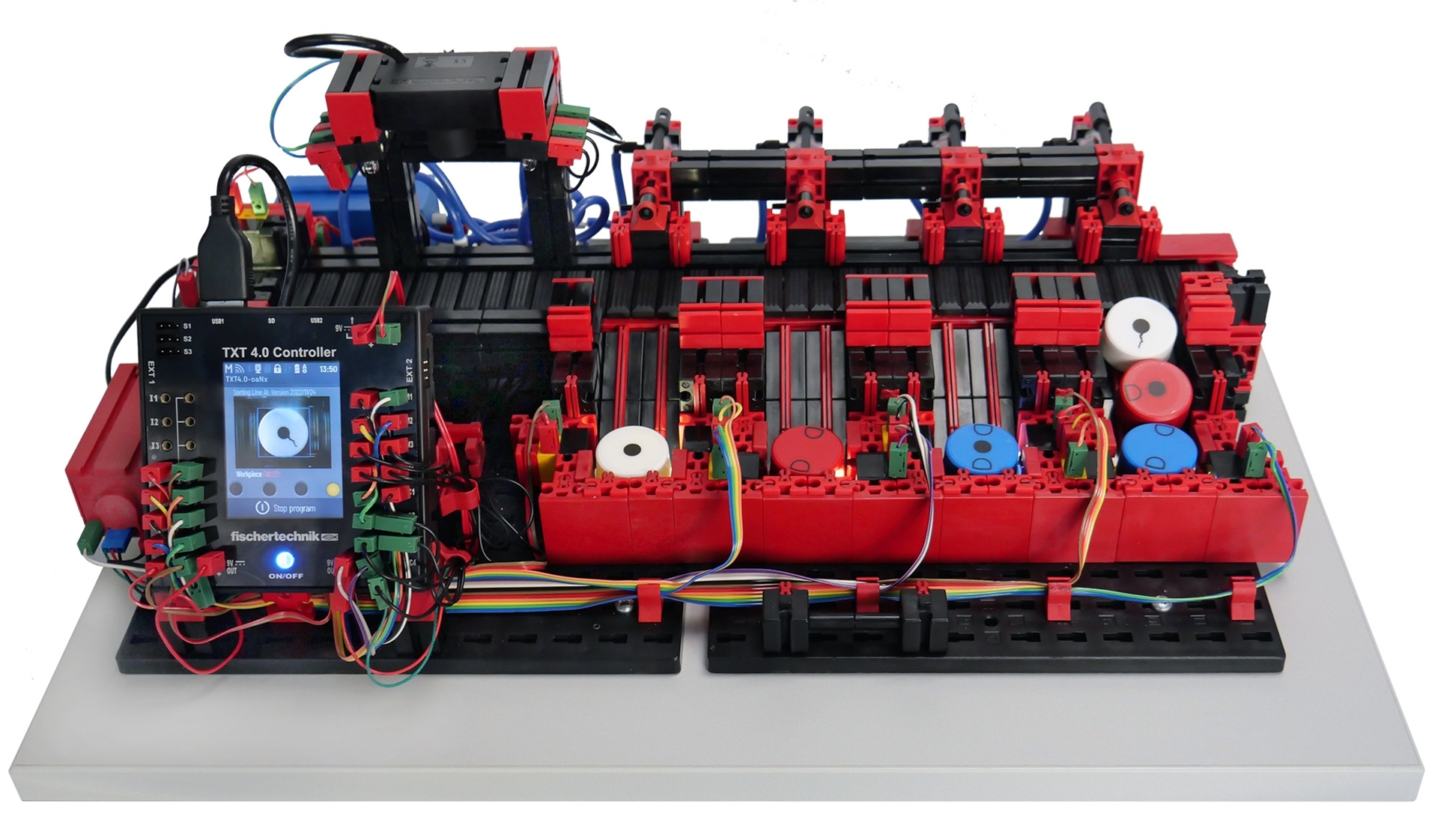

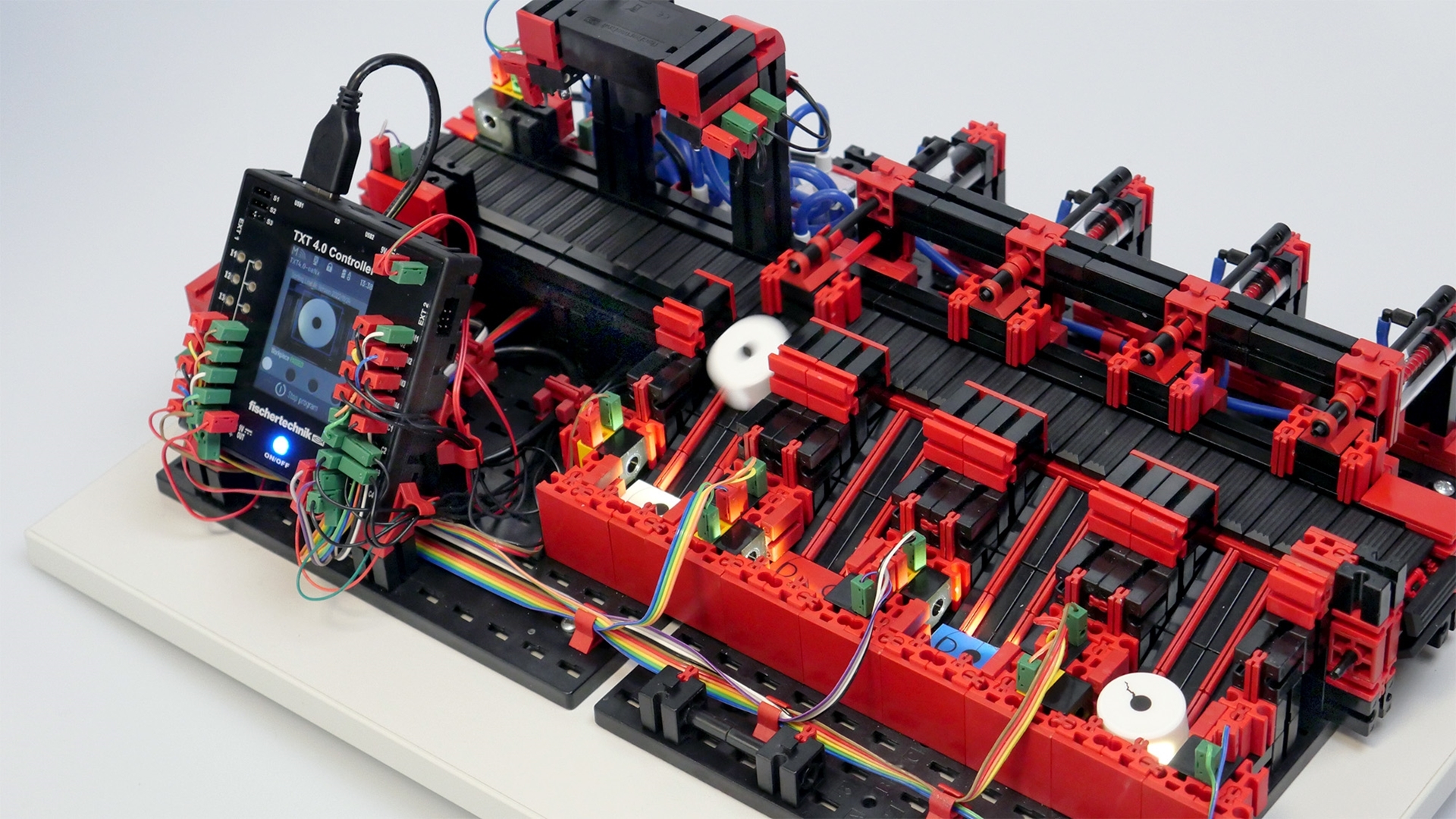

    Model structure of the sorting line with AI

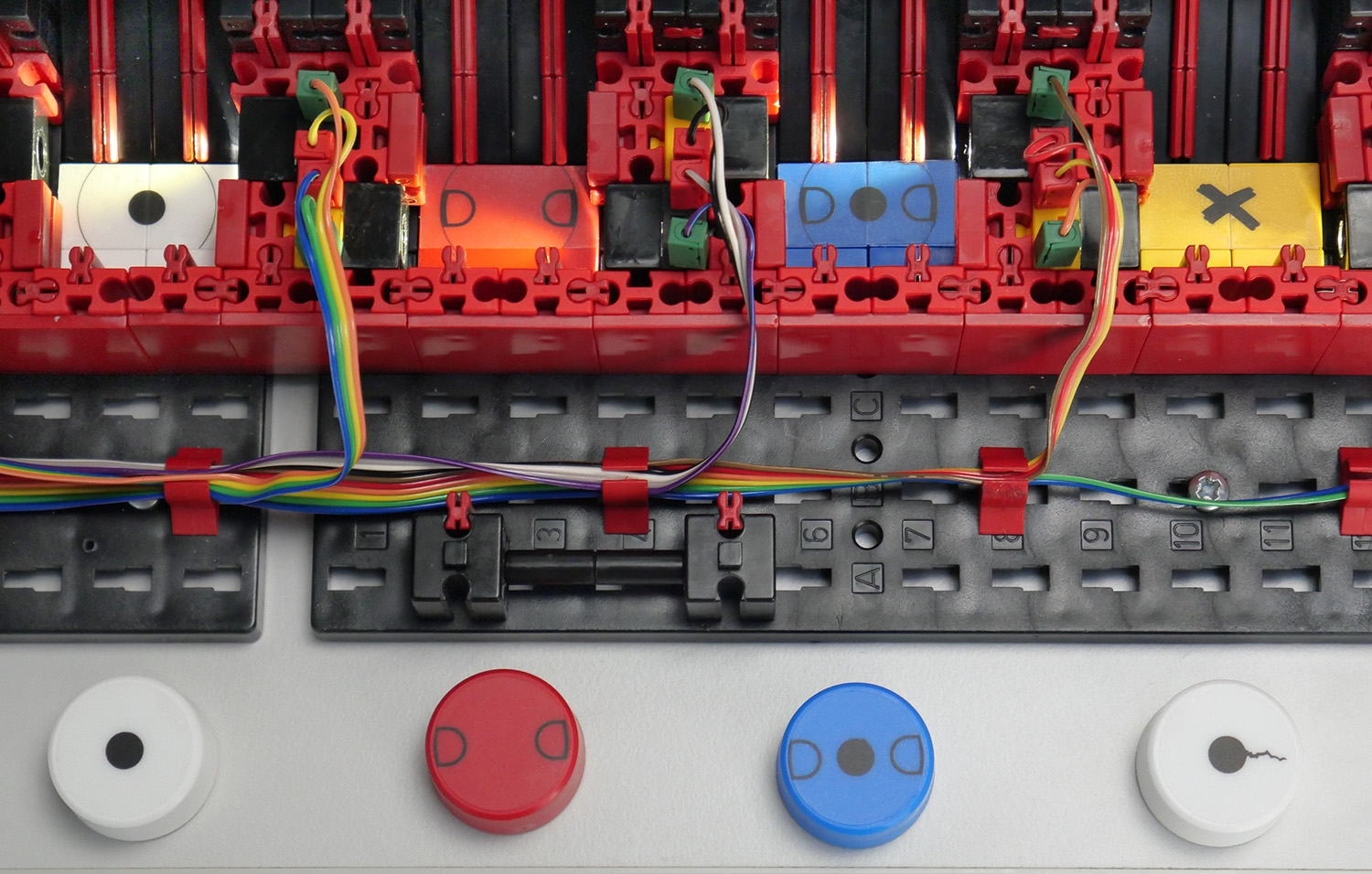

    Sorting line for workpieces in 3 different colors (white, red, blue), with 3 different machining features (bore, gouges, bore+gouges) as well as different error patterns (bore out-of-round, bore missing, gouges missing completely or partially, cracks in the workpiece. These machining and defect features are simulated with corresponding adhesive labels on the workpieces. The workpieces are scanned by the camera and classified using the trained AI. Depending on the color, feature and defect pattern, the workpieces are then sorted into 4 different bays. The AI is implemented with Tensorflow and is run on the TXT 4.0 controller. Own AI models can also be generated. The training is done on a computer in Python. A corresponding example project is provided. The sequence control for the sorting system is implemented in the programming environment ROBO Pro Coding and in Python.

    Model includes the following components:

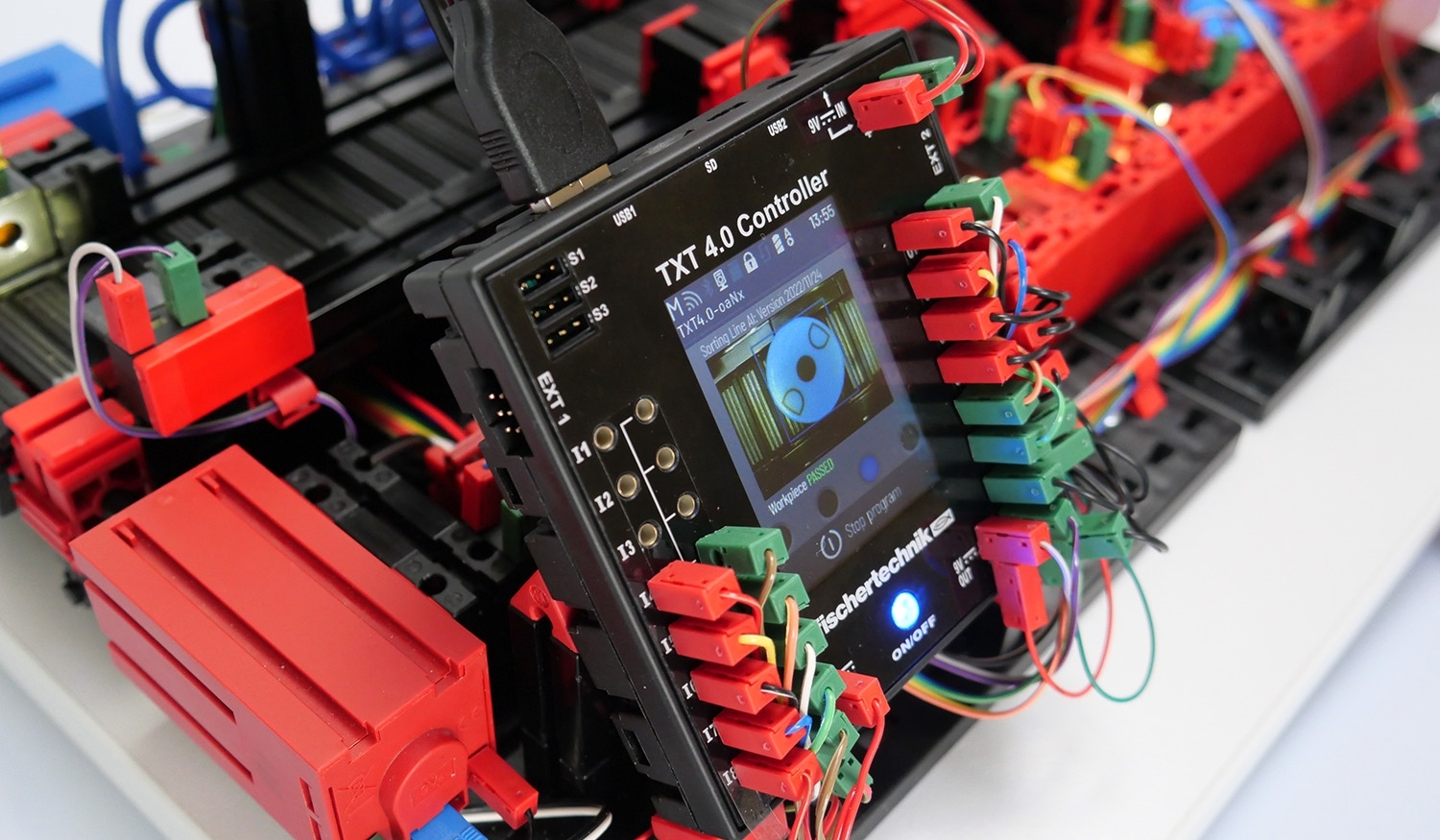

    • TXT 4.0 Controller

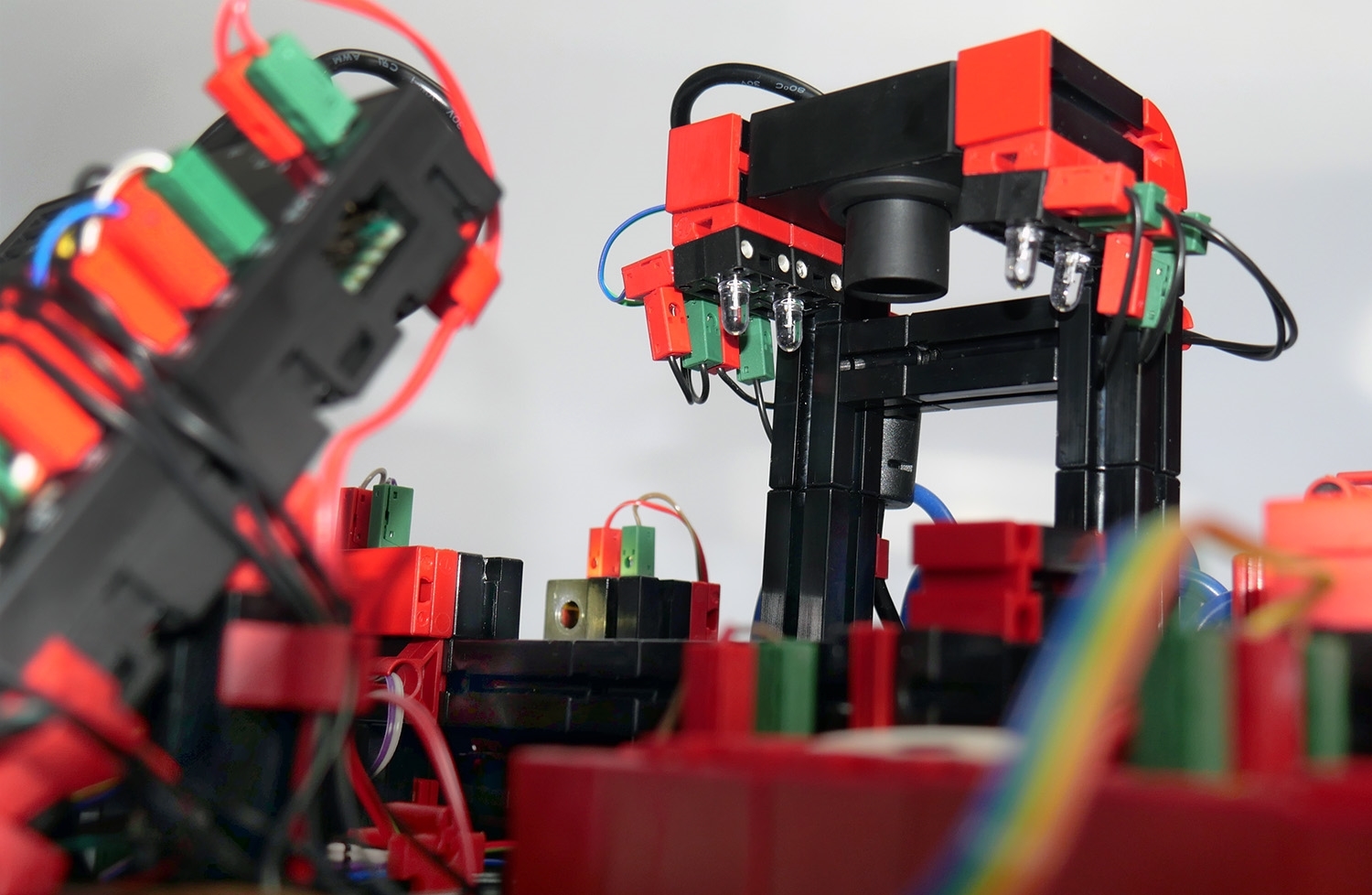

    • USB camera
    • Encoder motor
    • Compressor
    • 4x 3/2 way solenoid valves
    • 4x pneumatic cylinder
    • 5x light barriers (5x phototransistor + 5x light barrier LED)
    • 4x LED for illumination of the camera field
    • 24x workpieces
    System prerequisites of software Windows 10, MAC OS, Linux, Android, iOS



    “The AI sorting system is used for teaching as well as research at DHBW Mosbach, Bad Mergentheim Campus, within the scope of student research projects in the context of AI with a focus on machine vision. The model is powerful, smart and intuitive to operate.

    The interaction of software and haptics creates understanding for machine vision and roll dynamics in particular. We succeed in inspiring students and visualizing complex correlations. This creates self-confidence and technological competence. In my opinion, the model can be used very well in teaching, learning, research in STEM and Higher Education."

    - says Prof. Carsten Müller, Professor of Applied Computer Science at DHBW Baden-Wuerttemberg Mosbach.
