    3D-Robot 24v

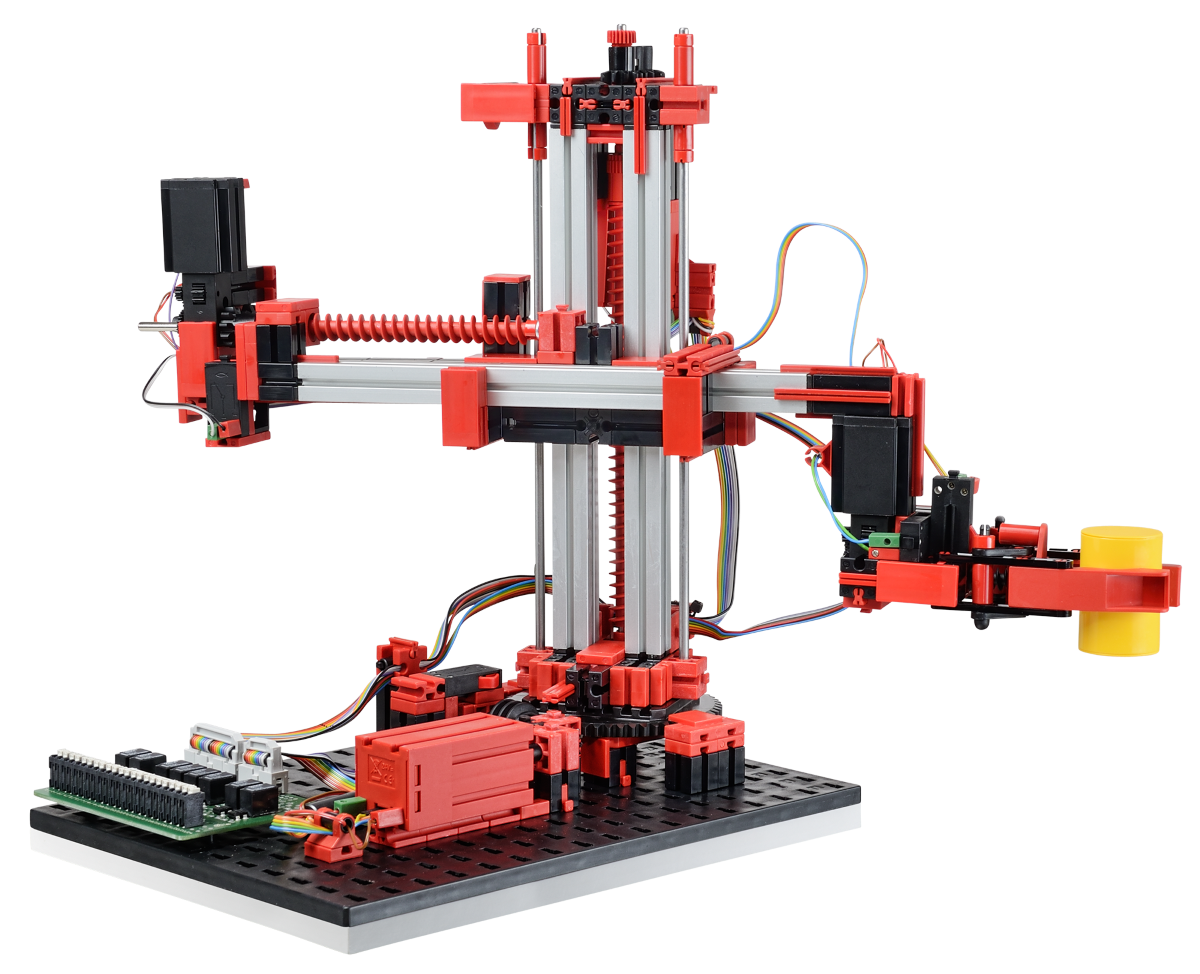

    3-axis robot with gripping forceps. Robot quickly and precisely positions workpieces in three -dimensional space. Fully assembled training model for use with PLC (Programable Logic Controllers) and PLC programming software.

    MFR Part #: 511938
    $1,059.95
    In stock

    3-axis robot with gripping forceps. Robot quickly and precisely positions workpieces in three -dimensional space.

    Degrees of freedom: Axis 1: turn 180 degrees. Axis 2: forward/back 90 mm. Axis 3: raise/lower 150 mm.

    Components on this model include 2 XS motors, 2 encoder motors, and 4 push button limit switches.

    Dimensions: 18.9 x 15.75 x 8.66 inches

    Weight: 5.95 lbs.

    Products specifications
    Detail

    Degrees of freedom:

    • Shaft 1: Rotation 180°
    • Shaft 2: Forward/back 90 mm
    • Shaft 3: Up/down 150 mm

    The fischertechnik 3-D Robot includes:

    • 2 XS Motors
    • 2 Encoder Motors
    • 4 Limit switches, 2 pulse sensors for path measurement
    • 8 Digital inputs
    • 8 Outputs: 4 Motors clockwise/counterclockwise rotation,

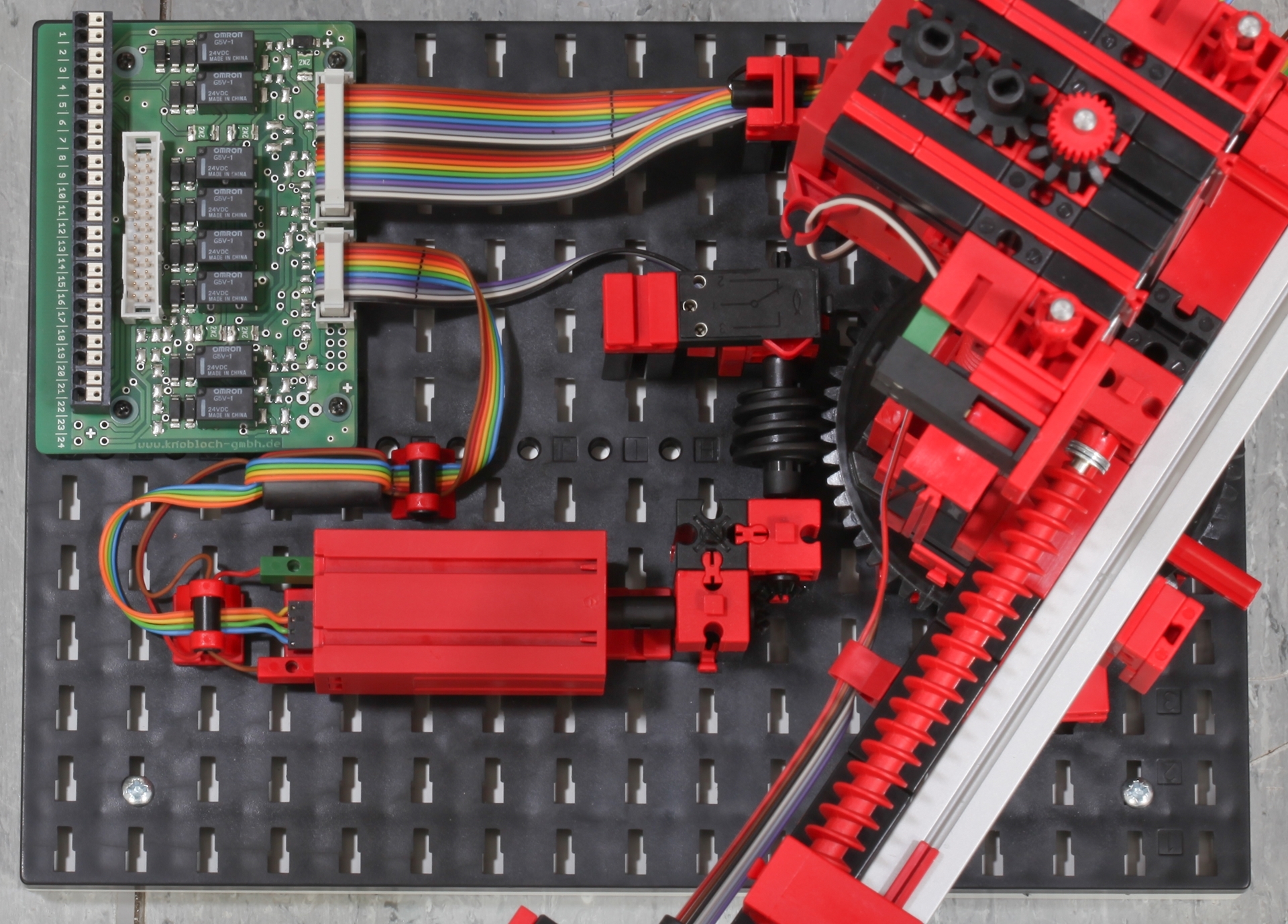

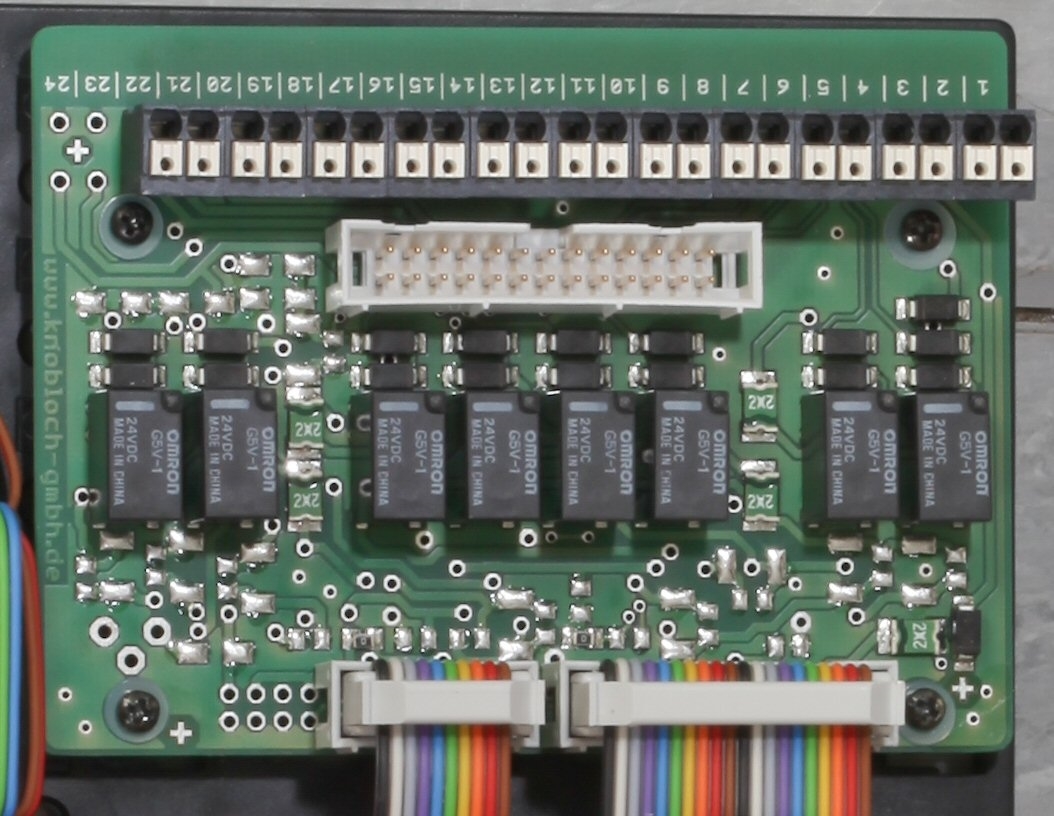

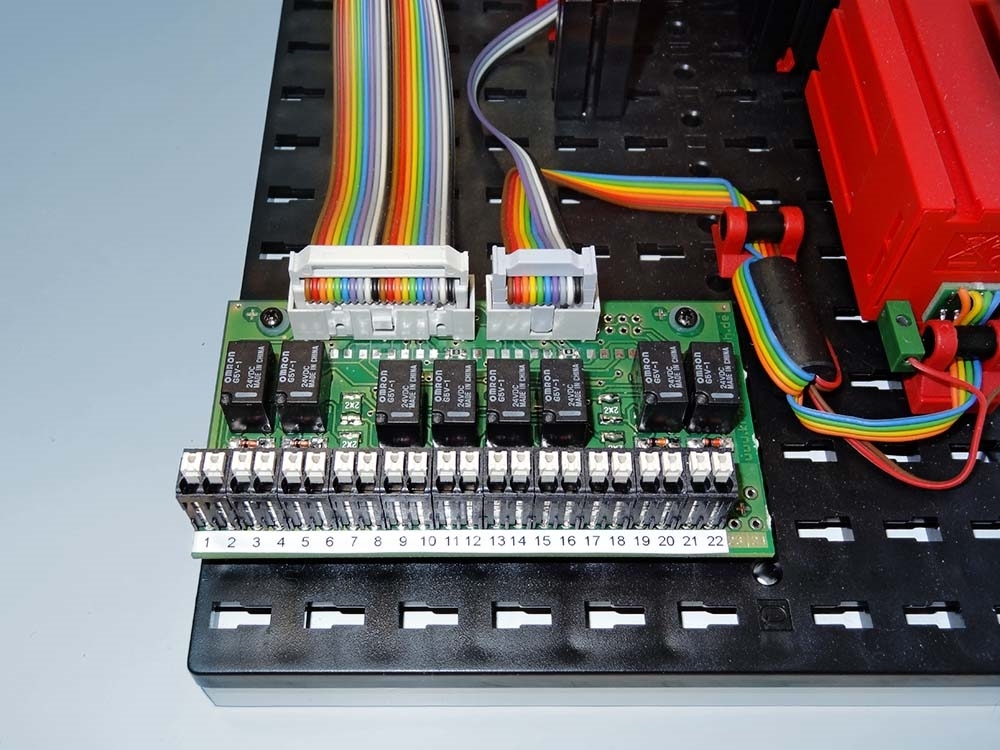

    • Port: PCB with relays to reverse polarity of motor, multi-pin connector (26 pins, grid 2,54 mm) and additional PCB terminals with push in connection for all I/O.

    NOT INCLUDED: PLC, program or program templates, programming software, connectors, other hardware
