    Conveyor Belt 24v

    $268.82

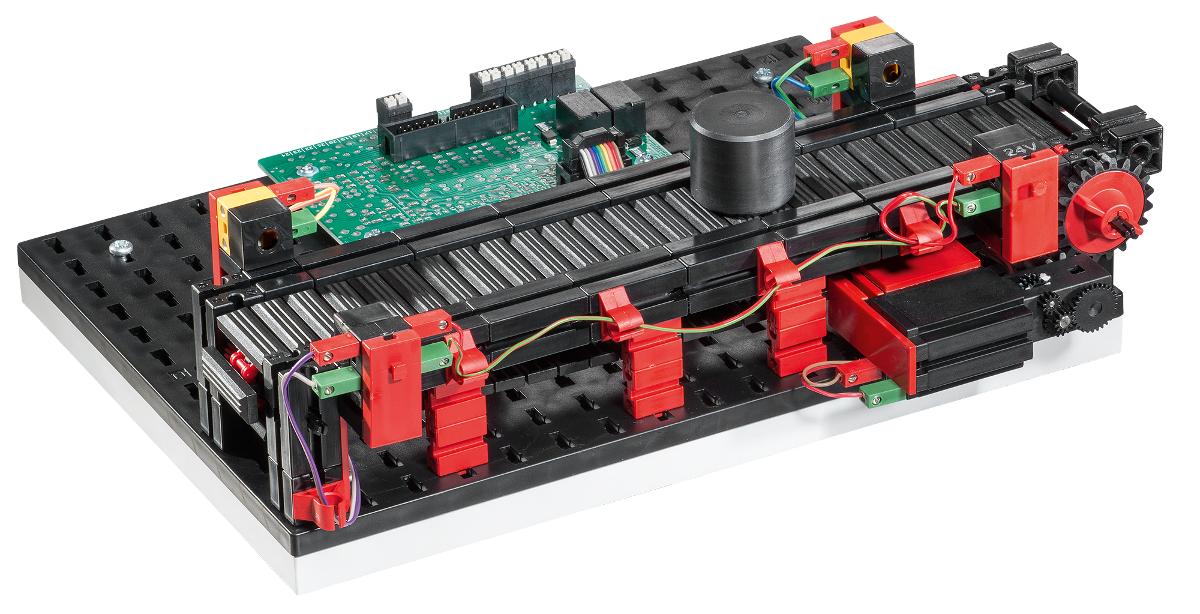

    Model consists of a transport belt with a length of 275 mm. used to transport workpieces with a diameter of up to 29mm. Multiple conveyors can easily be connected to increase the length of transport as desired. Fully assembled training model for use with PLC (Programable Logic Controllers) and PLC programming software.

    MFR Part #: 50464
    Availability: In stock

    Model consists of a transport belt with a length of 275 mm. used to transport workpieces with a diameter of up to 29mm. Multiple conveyors can easily be connected to increase the length of transport as desired.

    Components on this model include an XS motor, a push button limit switch, 2 phototransistors, and 2 LED light barriers.

    Dimensions: 13.58 x 9.45 x 3.94 inches

    Weight: 1.48 lbs.

    Products specifications
    Detail

    fischertechnik Conveyor Belt 24V model includes:

    • XS motors
    • 2 phototransistors
    • Push button limit switch
    • 2 LED light barriers
    • 1 workpiece

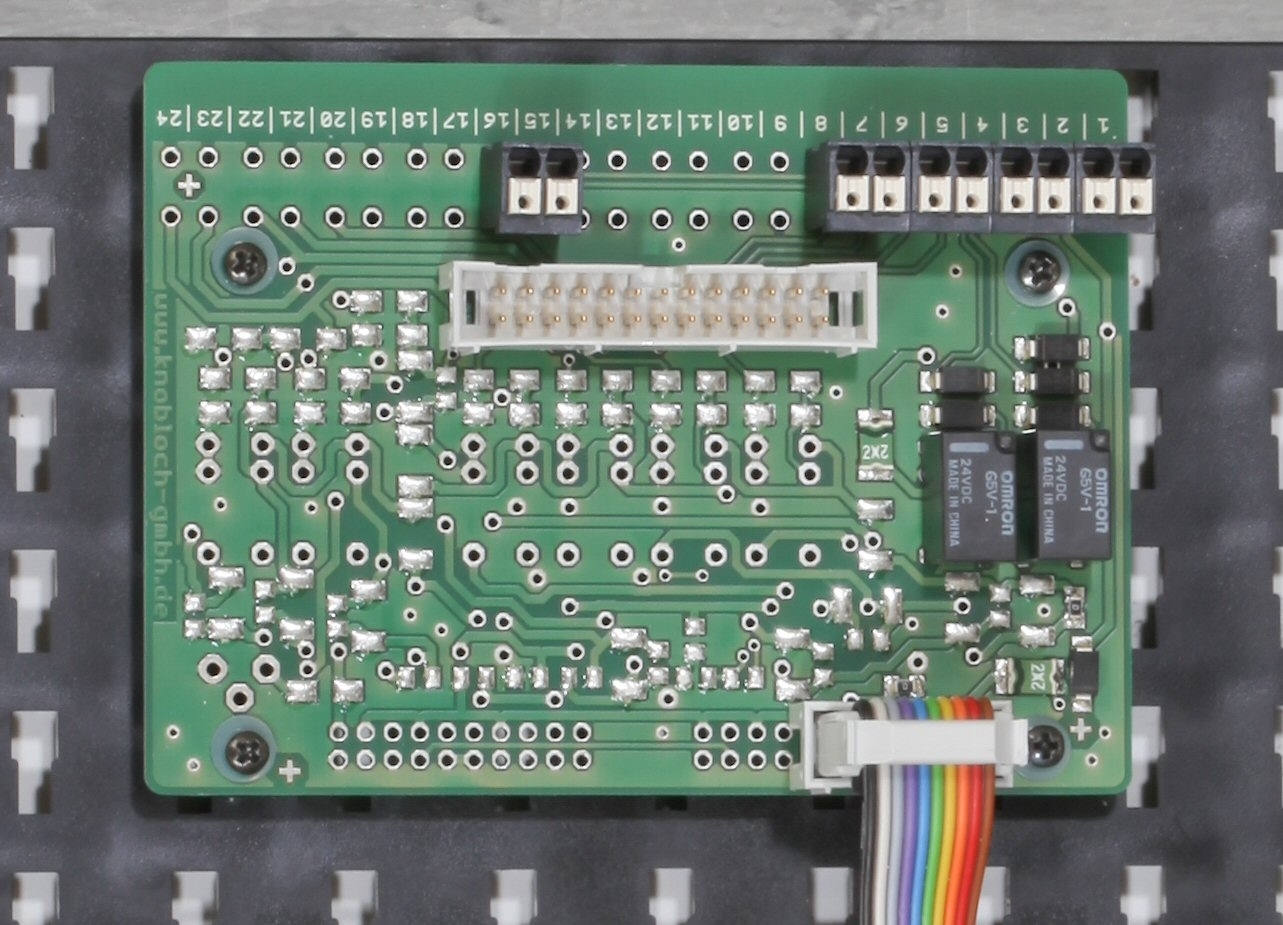

    • Port: PCB with relays to reverse polarity of motor, multi-pin connector (26 pins, grid 2,54 mm) and additional PCB terminals with push in connection for all I/O.

    NOT INCLUDED: PLC, program or program templates, programming software, connectors, other hardware

    Write your own review
    • Only registered users can write reviews
    • Bad
    • Excellent

    Model consists of a transport belt with a length of 275 mm. used to transport workpieces with a diameter of up to 29mm. Multiple conveyors can easily be connected to increase the length of transport as desired.

    Components on this model include an XS motor, a push button limit switch, 2 phototransistors, and 2 LED light barriers.

    Dimensions: 13.58 x 9.45 x 3.94 inches

    Weight: 1.48 lbs.

    Products specifications
    Detail

    fischertechnik Conveyor Belt 24V model includes:

    • XS motors
    • 2 phototransistors
    • Push button limit switch
    • 2 LED light barriers
    • 1 workpiece
    • Port: PCB with relays to reverse polarity of motor, multi-pin connector (26 pins, grid 2,54 mm) and additional PCB terminals with push in connection for all I/O.

    NOT INCLUDED: PLC, program or program templates, programming software, connectors, other hardware
