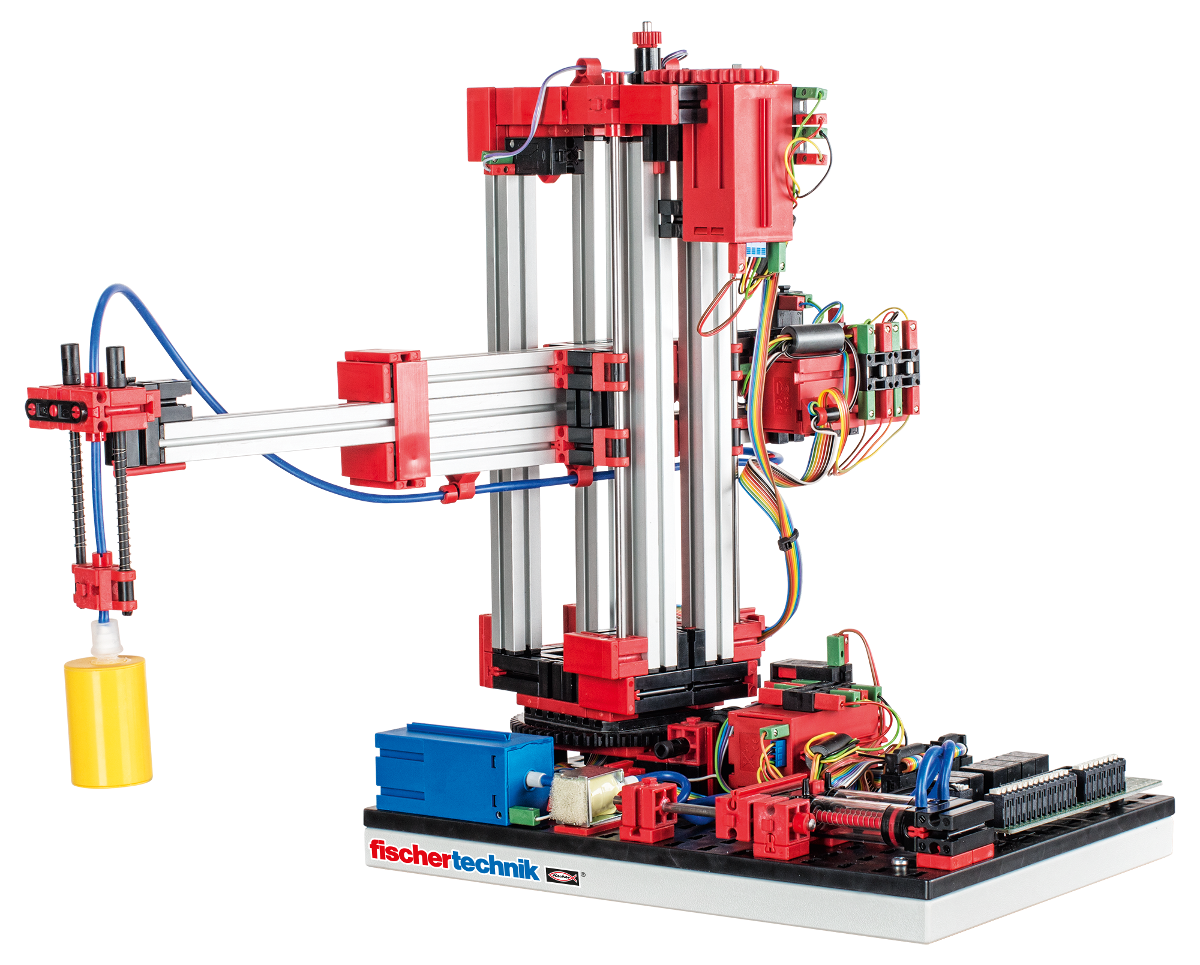

fischertechnik Vacuum Gripper Robot 24V

Be the first to review this product

3-axis robot with vacuum gripper. Works quickly and precisely, to position workpieces in three-dimensional space. Fully assembled training model for use with PLC (Programable Logic Controllers) and PLC programming software.

MFR Part #: 536630

$1,199.95

In stock

Qty:

Overview
Specifications
Reviews

3-axis robot with vacuum gripper. Works quickly and precisely, to position workpieces in three-dimensional space.

Working range: X-axis 270 degrees, Y-Axis (forwards/back) 140 mm., Z-axis (up/down) 120mm.

Model includes 3 encoder motors, 3 push button limit switches, a vacuum suction device, a compressor, and a solenoid valve.

Model Dimensions: 8.74 x 18.98 x 15.03 inches.

Weight: 6.88 lbs.

Products specifications

Detail	The fischertechnik Vacuum Gripper Robot 24V includes: 4 DC motors, including 2 with integrated magnetic encoder (max. pulse frequency 1kHz) 4 Limit switches 2 Pulse sensors for path measurement 8 Digital inputs 8 Outputs, 24V: 4 motors clockwise/counterclockwise rotation Relay board for motor polarity reversal Port: PCB with relays to reverse polarity of motor, multi-pin connector (34 pin ST1 connection) and additional PCB terminals with push in connection for all I/O. NOT INCLUDED: PLC, program or program templates, programming software, connectors, other hardware

Write your own review

Product can be reviewed only after purchasing it
Only registered users can write reviews

3-axis robot with vacuum gripper. Works quickly and precisely, to position workpieces in three-dimensional space.

Working range: X-axis 270 degrees, Y-Axis (forwards/back) 140 mm., Z-axis (up/down) 120mm.

Model includes 3 encoder motors, 3 push button limit switches, a vacuum suction device, a compressor, and a solenoid valve.

Model Dimensions: 8.74 x 18.98 x 15.03 inches.

Weight: 6.88 lbs.

Products specifications

Detail	The fischertechnik Vacuum Gripper Robot 24V includes: 4 DC motors, including 2 with integrated magnetic encoder (max. pulse frequency 1kHz) 4 Limit switches 2 Pulse sensors for path measurement 8 Digital inputs 8 Outputs, 24V: 4 motors clockwise/counterclockwise rotation Relay board for motor polarity reversal Port: PCB with relays to reverse polarity of motor, multi-pin connector (34 pin ST1 connection) and additional PCB terminals with push in connection for all I/O. NOT INCLUDED: PLC, program or program templates, programming software, connectors, other hardware

Customers who bought this item also bought

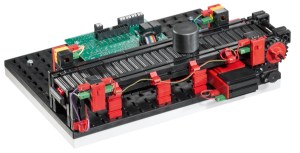

Conveyor Belt 24V
